taken from this page - run through google translate beta, then edited to only show the 2SA1115F
| Type name | Company name Mnf. |
Use App. |
Structure Type |
Maximum rating Max. Ratings (Ta=25 ゚ C) | Electric quality Elec. Character. (Ta=25 ゚ C) | External form Pac. Dim. No. |
Remark | ||||||||
| VCBO | VEBO | Ic | Pc | Tj | Direct current or pulse hFE | fab/ft* | Cob | ||||||||
| (v) | (v) | (mA) | (mW) | (゚ C) | VCE (v) | Ic (mA) | (MHz) | (pF) | |||||||

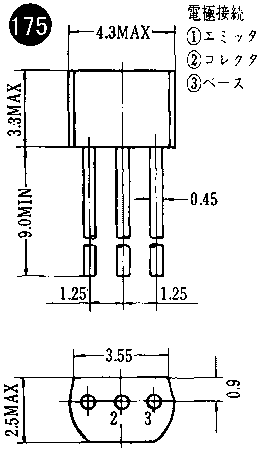

| 2SA1115 | " | " | " | -50 | -6 | -200 | 300 | 125 | 90-800 | -6 | -1 | 200* | 6.5 | 175 | 2SC2603 and [konpuri] |
